61 35 360 Removing and installing/replacing control unit for camera-based driver assistance systems (KAFAS)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Disconnect NEGATIVE BATTERY CABLE
Remove both battery earth leads at F03
Remove TRIM PANEL FOR PEDAL MECHANISM .

Disconnect plug connection (1).

Release screw (2).

Tightening torque 61 35 2AZ .

Pull control unit (3) out of equipment carrier (4) in direction of arrow.

Installation note:

Make sure control unit (3) is correctly installed in equipment carrier (4).

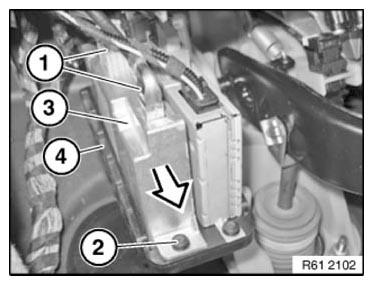

Fig 1: Removing Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/ENCODING .

Carry out calibration:

Service function
Body
Display and information functions
Camera-based assist system
Calibration of lane departure warning
