61 20 005 Testing battery with battery tester

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Check is not permissible for AGM and lithium ion batteries.
Check does not apply to F-series.

WARNING: Observe SAFETY INFORMATION for handling the vehicle battery.

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT FLOOR TRIM PANEL .

Procedure:

Turn off ignition and close doors
Connect battery tester directly to battery terminals
Select Battery test and confirm
Enter vehicle identification number
Enter battery data
Carry out battery test

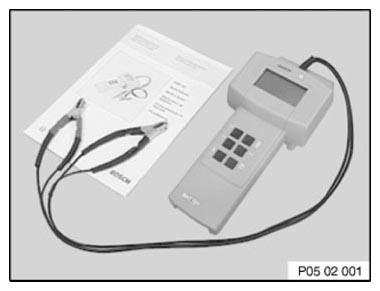

Fig 1: Identifying Battery Tester
Courtesy of BMW OF NORTH AMERICA, INC.
