61 12 013 Replacing the battery earth lead

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe SAFETY INFORMATION for handling the vehicle battery.
Observe the notes on the INTELLIGENT BATTERY SENSOR (IBS) .

Necessary preliminary work:

Disconnect BATTERY EARTH LEAD

Disconnect plug connection (1).

Remove nut (2) and battery earth lead (3).

Tightening torque 61 21 6AZ .

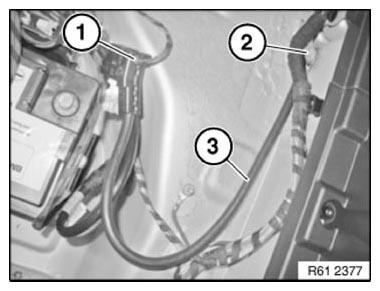

Fig 1: Identifying Battery Earth Lead, Plug Connection, And Nut

Courtesy of BMW OF NORTH AMERICA, INC.
