61 12 002 Replacing positive battery cable (from battery to luggage compartment cable connector)
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Observe SAFETY INFORMATION for handling the vehicle battery.
Necessary preliminary tasks:
- Disconnect NEGATIVE BATTERY CABLE

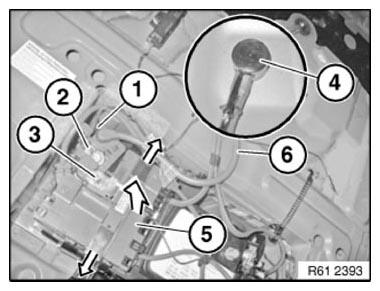

If necessary, unlock and disconnect plug connection (1) of safety battery terminal lead.
IMPORTANT:
Do not under any circumstances pull/lever off safety battery terminal (1) by force.
Loosen nut (2).
Tightening torque 61 21 1AZ .
Unscrew nut (3).
Tightening torque 61 21 2AZ .
Open cap (4) and release nut underneath.
Tightening torque 61 21 4AZ .
Unclip locking brackets from power distribution box (5) in direction of arrow.
Raise power distribution box (5) in direction of arrow and remove positive battery cable (6).
