51 13 280 Removing and installing/replacing trim strip on roof frame at left or right: Notes

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 321

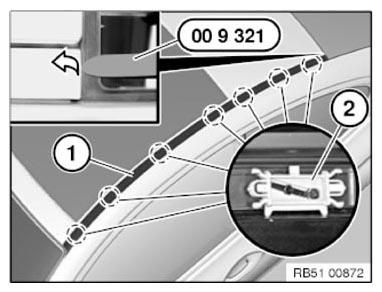

Starting from the rear, use special tool 00 9 321 to remove trim strip (1) from clips (2).

Fig 1: Removing Trim Strip From Clips

G10062603

Courtesy of BMW OF NORTH AMERICA, INC.

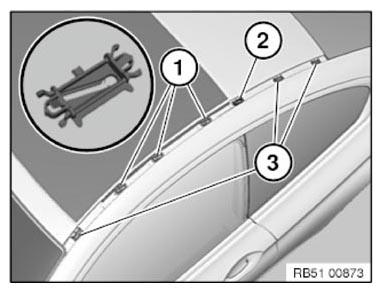

Installation note:

Replace faulty clips (1 to 3).

IMPORTANT: Different clips (1 to 3) can be installed.
Version without tilt sunroof:
Clips (1 to 3) are white.
Version with tilt sunroof:

Clips, grey
Red clip
Clips, white
In rear area two white clips (3)

Fig 2: Identifying Clips

G10062604

Courtesy of BMW OF NORTH AMERICA, INC.

Emergency strategy if T-bolt is broken:

Refer to REPAIRING CLIPS FOR ROOF STRIP .

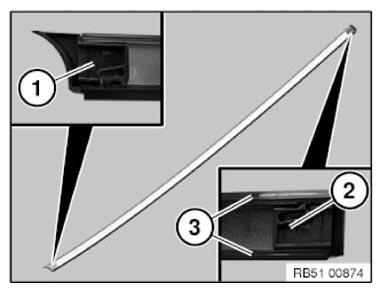

Installation note:

Following parts of trim strip must not be damaged or missing:

Front end cap
Rear end cap
Gasket

Fig 3: Identifying End Caps And Gasket
Courtesy of BMW OF NORTH AMERICA, INC.

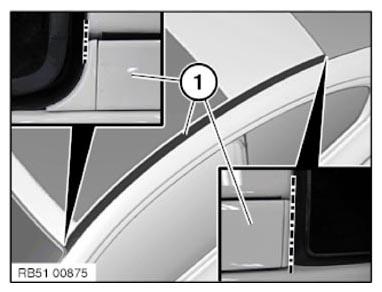

Installation note:

Trim strip (1) must be flush with roof outer skin at front and rear.

Fig 4: Installing Trim Strip

G10062606

Courtesy of BMW OF NORTH AMERICA, INC.
