51 13 063 Replacing wheel arch trim on rear left or right side panel (Japanese national-market version)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

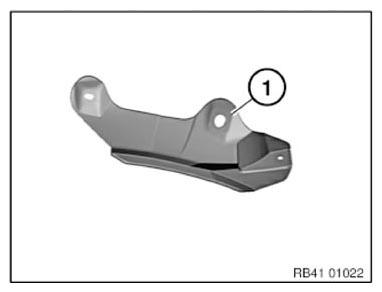

(1) = Black wheel arch trim

Fig 1: Identifying Wheel Arch Trim
G10062614Courtesy of BMW OF NORTH AMERICA, INC.

Removal:

Lift vehicle on rear jacking point.

Release screws (1).

Press wheel arch cover to side and remove wheel arch trim.

Installation:

The installation takes place in reverse order.

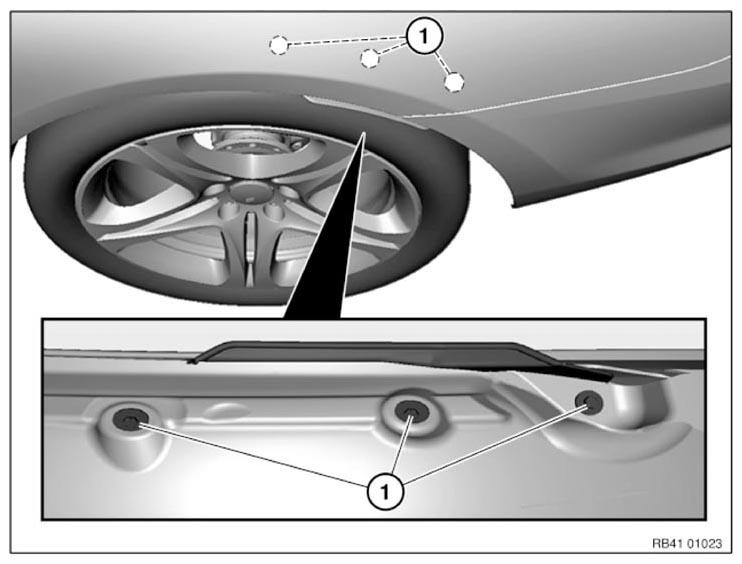

Fig 2: Locating Screws
G10062615Courtesy of BMW OF NORTH AMERICA, INC.
