51 16 026 Replacing mirror glass
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
WARNING:
Danger of injury.
Move mirror glass with hand carefully and slowly.
If mirror glass is damaged:
Wear protective goggles and cut-proof gloves.
Danger of injury by flaking-off glass splinters.
Move mirror glass with hand carefully and slowly.
If mirror glass is damaged:
Wear protective goggles and cut-proof gloves.
Danger of injury by flaking-off glass splinters.
IMPORTANT:
Risk of damage.
Bring exterior mirror to room temperature to prevent latch mechanisms from breaking off.
Bring exterior mirror to room temperature to prevent latch mechanisms from breaking off.
IMPORTANT:
Risk of damage.
Secure mirror glass (1) against falling out.
Secure mirror glass (1) against falling out.

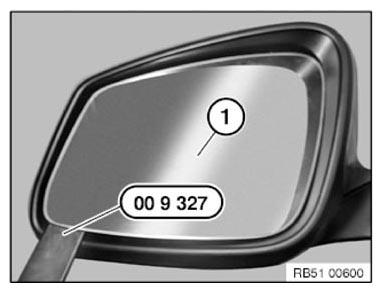

Press mirror glass (1) on side vehicle by hand to full extent.
Starting on the outside, unclip mirror glass (1) around all sides with special tool 00 9 327 .

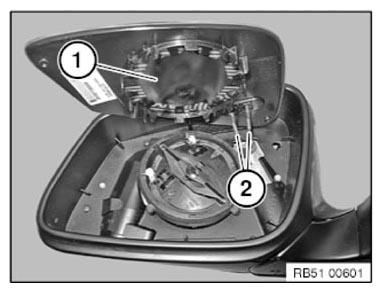

Unlock and disconnect associated plug connections (2).
Remove the mirror glass (1).
Installation note:

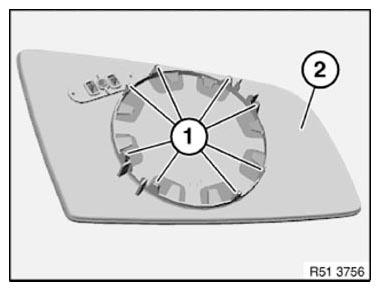

Retaining lugs (1) must not be damaged.
Fit mirror glass (2) with retaining lugs (1) flush on mirror adjusting drive and clip into place.
Ensure correct locking.
Make sure mirror adjusting drive functions correctly.
