51 72 000 Replacing edge protection for left or right front door
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.
Necessary preliminary tasks:
IMPORTANT:
Follow notes for FITTING SEALING .

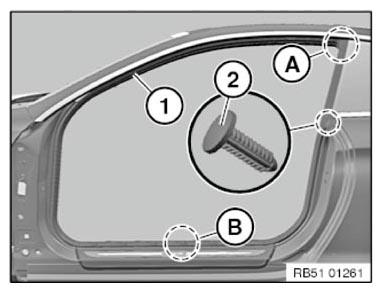

Release edge protection (1) from clip (2) and pull off from body completely.
Installation note:
Install edge protection (1) starting in area "A".
Fit clip (2) with sealing ring between body and edge protection (1).
Pull off mounting cord starting in area "B".
