51 45 115 Removing and installing speaker frame on panel for instrument panel at top
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).
Unclip trim (1) with special tool 00 9 327 from latch mechanisms and remove upwards.
Installation note:

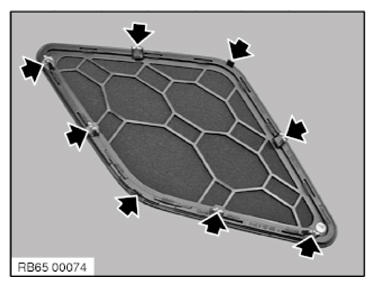

Retaining lugs and clamps at marked points must not be damaged.
