51 45 031 Replacing instrument panel trim

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Remove INSTRUMENT PANEL TRIM
Change over AIRBAG MODULE ON PASSENGER SIDE
Refit RIGHT FRESH AIR GRILLE , if necessary

NOTE: Struts (2) left and right left from production must be removed from new instrument panel trim (1). Separation occurs at marked points of instrument panel trim (1).

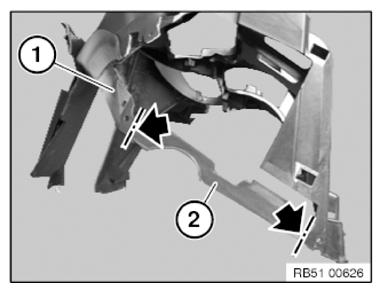

Fig 1: Identifying Struts And Instrument Panel Trim

G10046541

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) on center function carrier (1).

Pull out function carrier center (1) toward to the front.

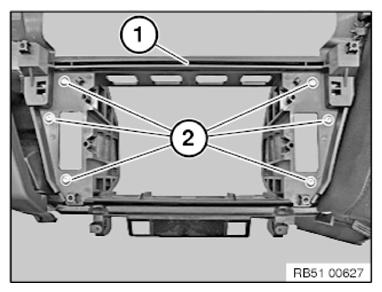

Fig 2: Identifying Screws On Center Function Carrier

G10046542

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) from CID back cover (2) and remove CID back cover (2).

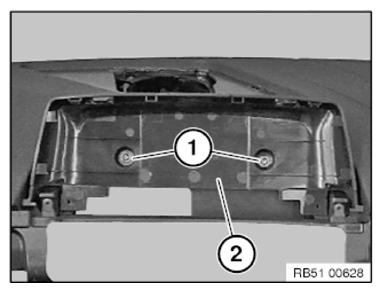

Fig 3: Identifying CID Back Cover And Screws

G10048943

Courtesy of BMW OF NORTH AMERICA, INC.

Detach the defrost outlet (1) with special tool 00 9 325 from the instrument panel trim (2).

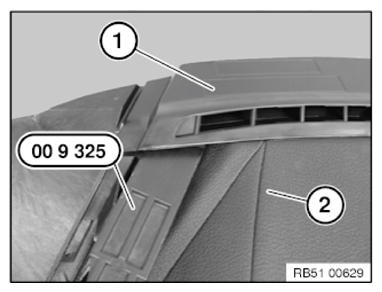

Fig 4: Detaching Defrost Outlet

G10046544

Courtesy of BMW OF NORTH AMERICA, INC.

Detach and remove the defrost outlet (1) further from left to right from the instrument panel trim (2).

Installation note:

Clamps (3) and securing eyes (4) on the defrost outlet (1) may not be damaged or missing. Ensure correct installation of defrost outlet (1).

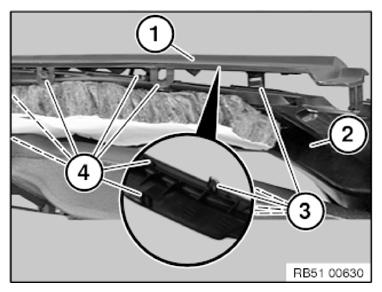

Fig 5: Identifying Defrost Outlet, Clamps, And Securing Eyes

G10046545

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) from the dashboard cover (1) and remove instrument cover (1).

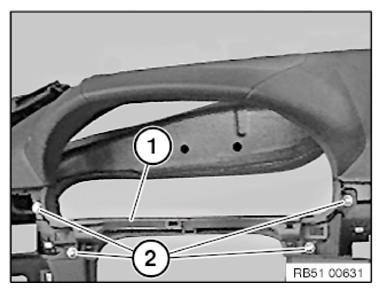

Fig 6: Identifying Dashboard Cover Screws

G10046546

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) from the left dashboard cover (2) and remove instrument cover (2).

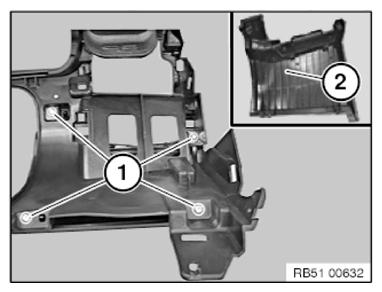

Fig 7: Identifying Left Dashboard Cover Screws

G10046547

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) from the right dashboard cover (2) and remove instrument cover (2).

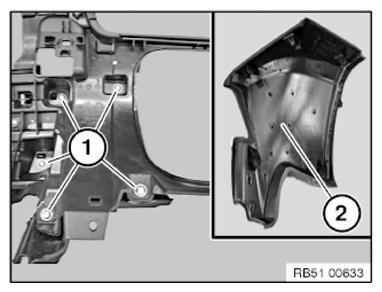

Fig 8: Identifying Right Dashboard Cover Screws

G10046548

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip left air duct (2) and remove from instrument panel cover (1).

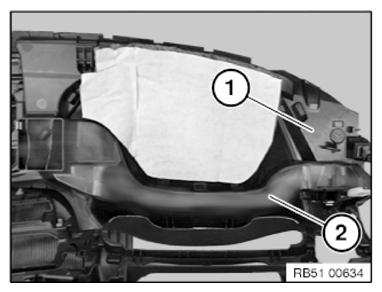

Fig 9: Identifying Air Duct And Instrument Panel Cover

G10046549

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip right air duct (3) and remove from instrument panel cover (1).

Remove AIRBAG MODULE ON PASSENGER SIDE (4).

Remove all retaining clips (2) from the instrument panel trim (1).

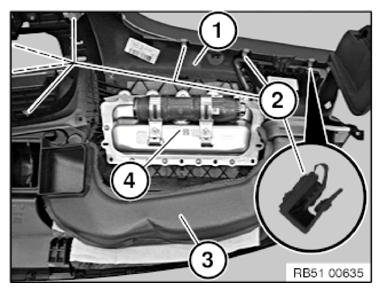

Fig 10: Identifying Instrument Panel Trim And Retaining Clips

G10046550

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, replace RESILIENT SEALING TAPE for VIN number inspection window.
