51 23 400 Removing and installing/replacing left or right actuator (active pedestrian protection), vehicles from 09/2011
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Adhere to the following SAFETY INFORMATION
so as to avoid a danger of injury by the actuator.
The BATTERY NEGATIVE LEAD must be clamped off prior to work on the actuator or engine compartment lid.
Do not exert any force on the actuator.
Incorrect handling may result in triggering of the actuator and thereby cause serious injury.
The BATTERY NEGATIVE LEAD must be clamped off prior to work on the actuator or engine compartment lid.
Do not exert any force on the actuator.
Incorrect handling may result in triggering of the actuator and thereby cause serious injury.
Necessary preliminary tasks:
Disconnect BATTERY EARTH LEAD .

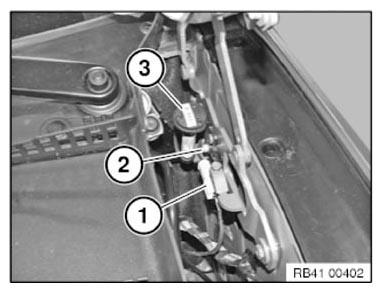

Unfasten plug connection (1) and disconnect.
Release bolt (2) and remove actuator (3).
Tightening torque 41 61 8AZ .
Comply with notes regarding handling active PEDESTRIAN PROTECTION .
