51 23 201 Removing and installing/replacing release mechanism for retaining hook on engine compartment lid

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Screw connection only:

Release screws (1) on engine compartment lid (2).

Unhook Bowden cables (4) from release element (3).

Remove release element (3).

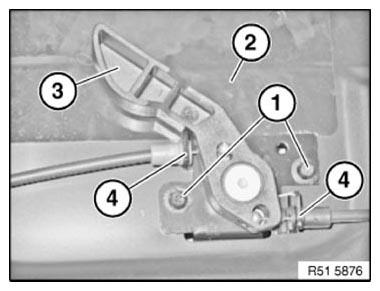

Fig 1: Identifying Screws On Engine Compartment Lid, Bowden Cables, And Release Element

Courtesy of BMW OF NORTH AMERICA, INC.

Riveting:

Drill off blind rivets (1).

Unhook Bowden cables (2) from release element (3).

Remove release element (3).

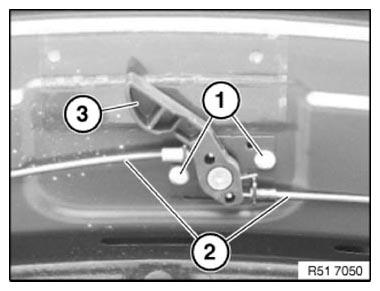

Fig 2: Identifying Release Element, Bowden Cables, And Blind Rivets

Courtesy of BMW OF NORTH AMERICA, INC.
