51 23 131 Adjusting left or right striker on engine compartment lid

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Adjusting striker is described in:

ADJUSTING ENGINE COMPARTMENT LID

Undo screws (3) and remove striker (2).

Tightening torque 51 23 1AZ .

Disconnect Bowden cable (1).

Installation note:

ADJUST ENGINE COMPARTMENT LID

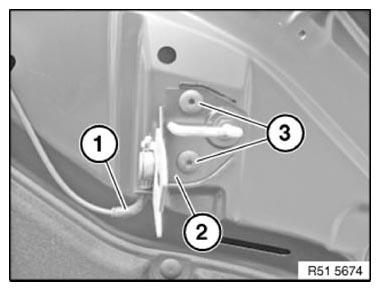

Fig 1: Identifying Striker, Screws And Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
