51 23 110 Removing and installing/replacing left engine compartment lid lock

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove SERVICE FLAPS, LEFT AND RIGHT

Slacken screws (1) and release screws (2).

Tightening torque 51 61 4AZ .

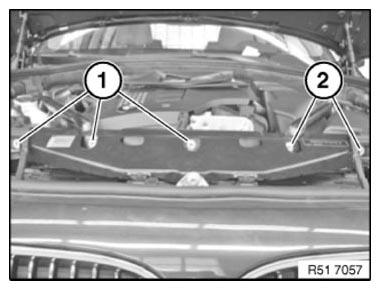

Fig 1: Identifying Screws

G10062798

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown removed here for purposes of clarity.

Pull back retaining spring from release lever (1).

Feed Bowden cable (2) out of release lever (1) and lock carrier (3).

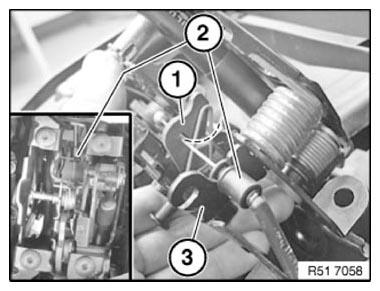

Fig 2: Feeding Bowden Cable Out Of Release Lever And Lock Carrier

G10062799

Courtesy of BMW OF NORTH AMERICA, INC.

Engine compartment lid catch with microswitch:

Detach plug connection (1) by twisting from catch carrier.

Unlock plug connection (1) and disconnect.

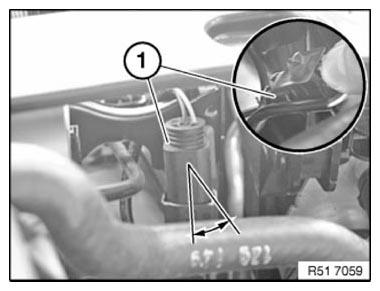

Fig 3: Detaching And Unlocking Plug Connection

G10062800

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on engine compartment lid lock (2).

Tightening torque 51 23 2AZ .

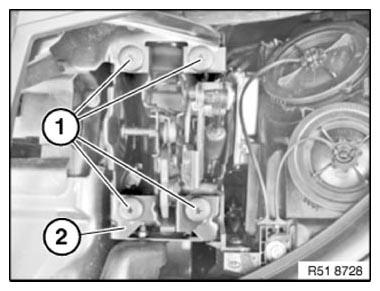

Fig 4: Identifying Screws On Engine Compartment Lid Lock

G10062801

Courtesy of BMW OF NORTH AMERICA, INC.

Push engine compartment lid lock (1) inwards until lock carrier (2) can be raised at the rear (see dashed line).

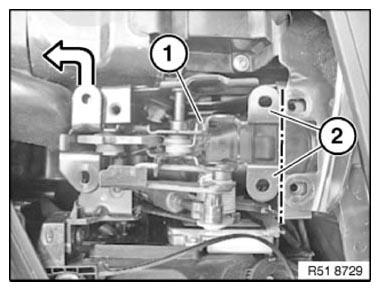

Fig 5: Pushing Engine Compartment Lid Lock Inward To Raise Lock Carrier

G10062802

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out engine compartment lid lock (1) at rear.

If necessary, feed out cable from microswitch for anti-theft alarm system.

Remove engine compartment lid lock (1).

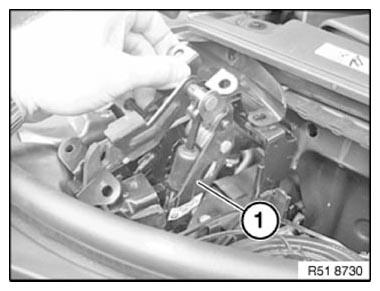

Fig 6: Lifting Out Engine Compartment Lid Lock

G10062803
