51 23 101 Removing and installing/replacing left active engine compartment lid lock

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Disconnect NEGATIVE TERMINAL
Remove SIDE ENGINE COMPARTMENT LID GASKET MOUNTING in working area

NOTE: Graphic for example purposes only (originates from F01).

Remove all screws (1) at join (2) from engine compartment lid door lock to center of vehicle; slacken remaining screws (1).

Tightening torque 51 61 6AZ .

NOTE: Connection (2) does not have to be removed.

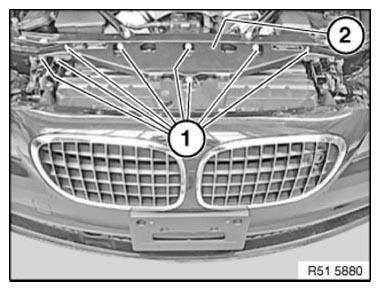

Fig 1: Identifying Screws

G10062795

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) on engine compartment lid lock (1).

Tightening torque 51 23 2AZ .

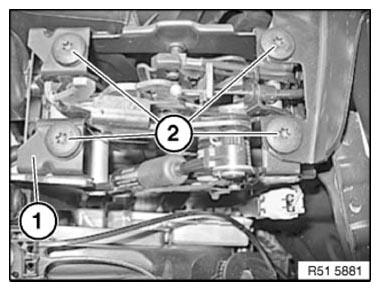

Fig 2: Identifying Screws On Engine Compartment Lid Lock

G10062796

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown removed here for purposes of clarity.

Disengage, unlock and disconnect plug connections (1) at lock carrier.

Disconnect Bowden cable (2).

Feed out engine compartment lid lock (3) upwards to the front.

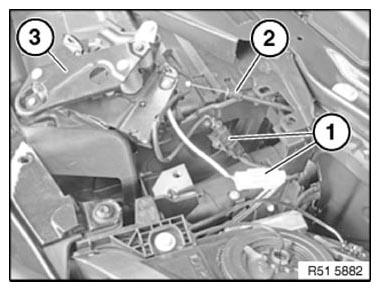

Fig 3: Identifying Plug Connections And Bowden Cable

G10062797

Courtesy of BMW OF NORTH AMERICA, INC.
