51 41... Removing and installing/replacing speaker cover (tweeter) on front left or right door trim panel
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove TWEETER from door trim panel

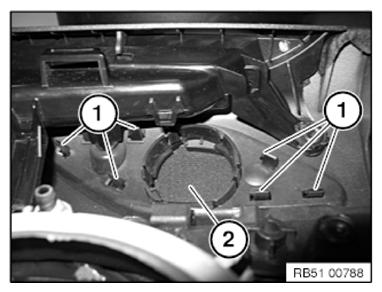

Release latch mechanisms (1) and remove speaker trim (2).
Installation note:
Catches (1) on speaker trim (2) must not be damaged.
