51 21 280 Removing and installing/replacing door stop on left or right front door

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Close door windows
Remove SOUND INSULATION IN FRONT AREA ONLY

NOTE: Operations are shown for F10 as an example.
After disengaging door stop, use suitable means of preventing door from opening past its maximum permissible opening angle (risk of damaging paintwork or bodywork).

NOTE: Secure front door against falling closed.

Lever out seal (1).

Release screw (2).

Tightening torque 51 21 3AZ .

Release screws (3).

Tightening torque 51 21 5AZ .

Installation note:

Seal (1) must not be damaged.

Fig 1: Identifying Seal And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove door stop (1) via aperture (2).

Fig 2: Removing Door Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Following parts of door retainer (3) must not be damaged:

Hinge
Thread

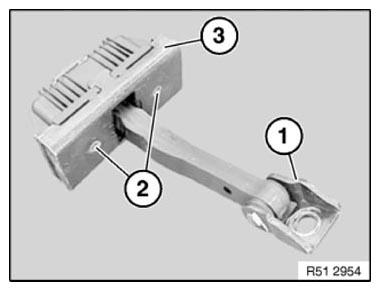

Fig 3: Identifying Door Retainer, Hinge, And Thread
Courtesy of BMW OF NORTH AMERICA, INC.
