51 21 003 Replacing door detent (lock striker), front left or right
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

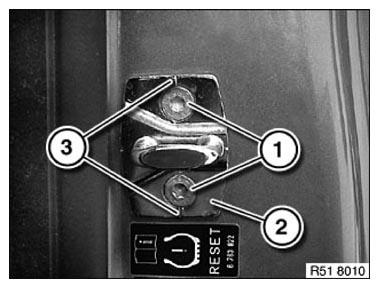

Release screws (1) and remove door detent (2).
Installation note:
If necessary, carry out basic adjustment by way of notches (3) on door detent (2) and B-pillar.
Tightening torque 51 21 2AZ .
After installation:
Adjust door detent. See ADJUSTING FRONT LEFT OR RIGHT LOCK STRIKER and ADJUSTING LEFT OR RIGHT DOOR .
