51 11 773 Replacing front lower left or right deformation element

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SUPPORT FOR BUMPER PANEL AT FRONT BOTTOM

Partially detach FRONT ENGINE UNDERCOVER and remove screw (1) from bottom cover.

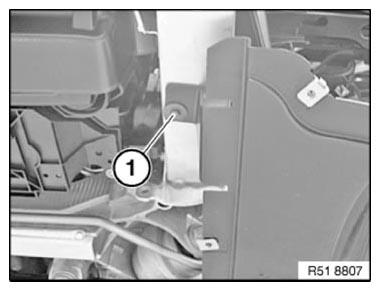

Fig 1: Identifying Screw

G10062574

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) on brake air duct (1).

Remove brake air duct (1) in direction of arrow.

Fig 2: Removing Brake Air Duct

G10062575

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on vertical connection (2).

Tightening torque 51 11 2AZ .

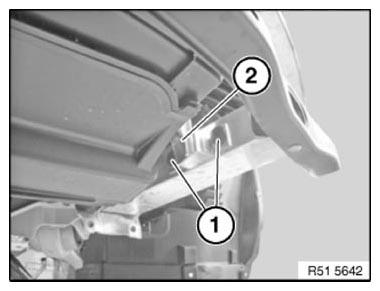

Fig 3: Identifying Screws On Vertical Connection

G10062576

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolt (1) on front axle support adapter plate (2).

Tightening torque 51 11 6AZ .

Remove deformation element (3).

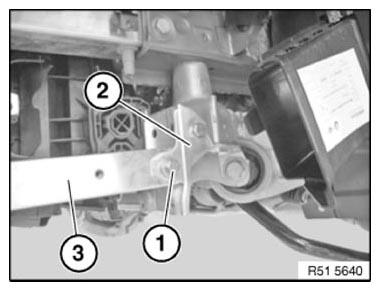

Fig 4: Identifying Front Axle Support Adapter Plate, Bolt, And Deformation Element

G10062577

Courtesy of BMW OF NORTH AMERICA, INC.
