51 31 015 Repairing damage to windscreen caused by stone chips (clear and tinted laminated safety glass)
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

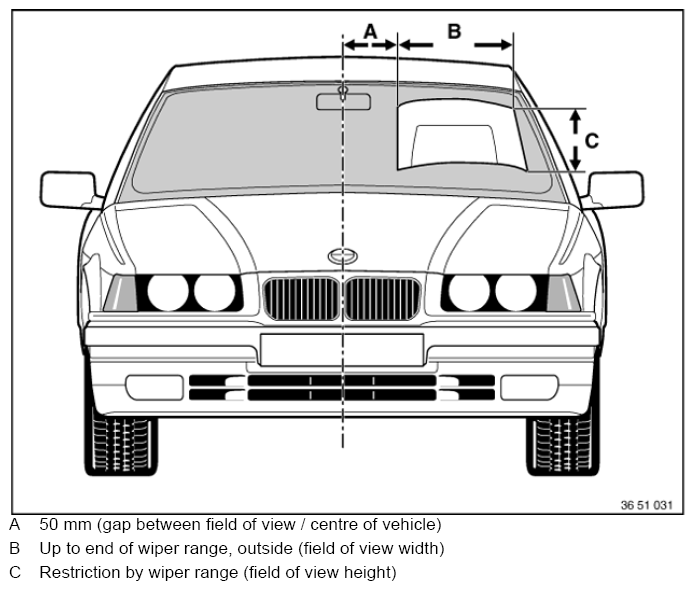

Field of vision (no repairs acceptable):
- 50 mm (gap between field of view/center of vehicle)
- Up to end of wiper range, outside (field of view width)
- Restriction by wiper range (field of view height)
IMPORTANT:
Repairs must only be carried out outside of the field of vision (refer to Fig 1).
If the stone chip damage is outside the field of vision, refer to REPAIR INSTRUCTION .
If the stone chip damage is outside the field of vision, refer to REPAIR INSTRUCTION .
