72 11 096 Removing and installing/replacing rear left or right lower strap (belt buckle)
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove REAR SEAT

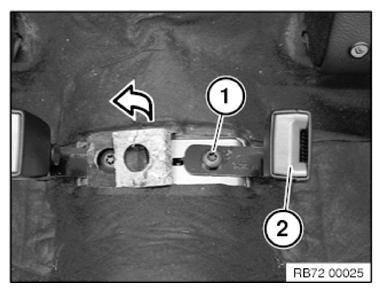

Release screw (1).
Tightening torque 71 11 22AZ .
Remove seat belt buckle (2).
Installation note:
Seat belt buckle (2) is encoded against incorrect assembly.
