72 11 071 Removing and installing/replacing front lower strap fitting (belt tensioner), front passenger seat
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove FRONT PASSENGER SEAT
WARNING:
Read and comply with SAFETY REGULATIONS for handling airbag modules and pyrotechnical belt tensioners.
Improper handling can lead to triggering of the pyrotechnical seat belt tensioner or side airbag, resulting in injuries.
Improper handling can lead to triggering of the pyrotechnical seat belt tensioner or side airbag, resulting in injuries.
Switch off the ignition.
Installation note:
- Microencapsulated screws (Loctite) must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of curing)
- Microencapsulated screws must not be retightened
- Clean thread of nut beforehand in event of repeated use

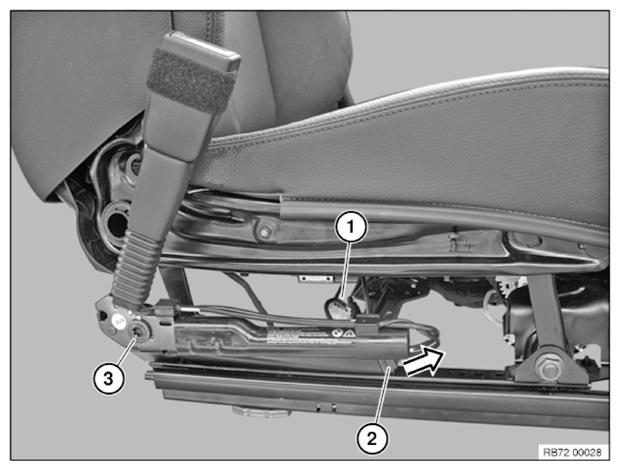

Unfasten plug connection (1) and disconnect.
Pull off metal clamp (2).
Release screw (3).
Tightening torque: 72 11 03AZ .
Remove belt tensioner.
Installation note:
Replace screw (3).
Belt tensioner is encoded against incorrect assembly.
Check metal clamp (2) for secure seat.
