52 24 400 Replacing seat cover for rear seat

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

52 0 050

Necessary preliminary tasks:

Remove REAR SEAT

Lever out welt in marked area.

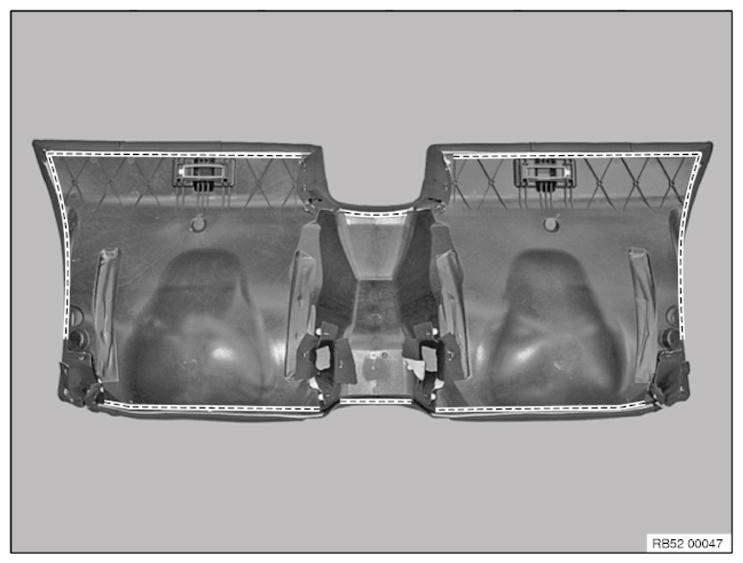

Fig 1: Identifying Rear Seat Welt Attachment Areas

G10047655

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamps in marked areas.

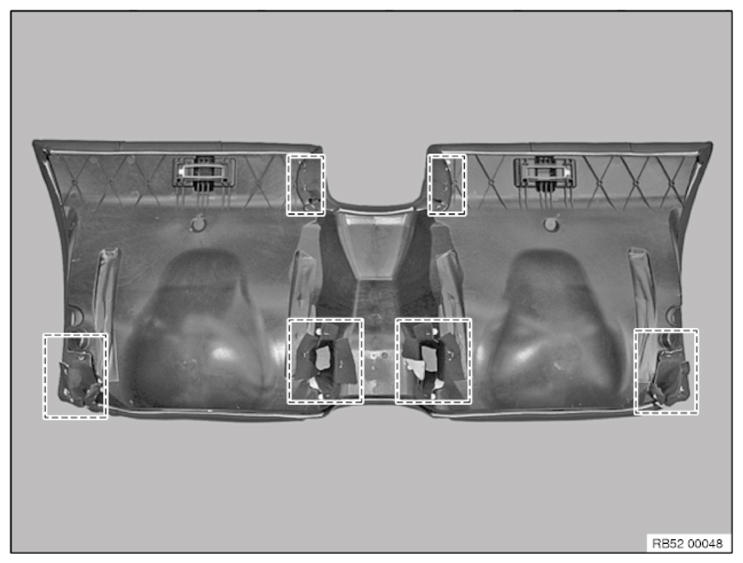

Fig 2: Locating Clamps

G10047656

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Remove remaining clamps from cover and upholstery.

Insert new clamps with special tool 52 0 050 .

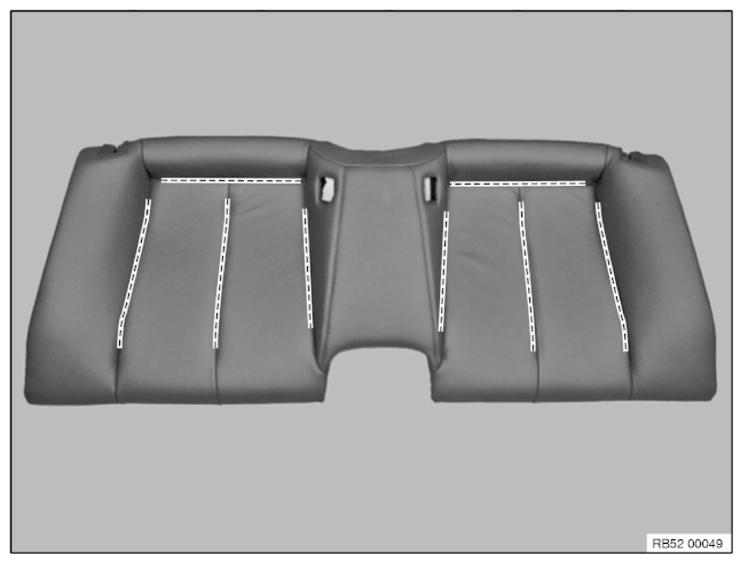

Fig 3: Locating Seat Cover Clamps

G10047657

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching cover and upholstery:

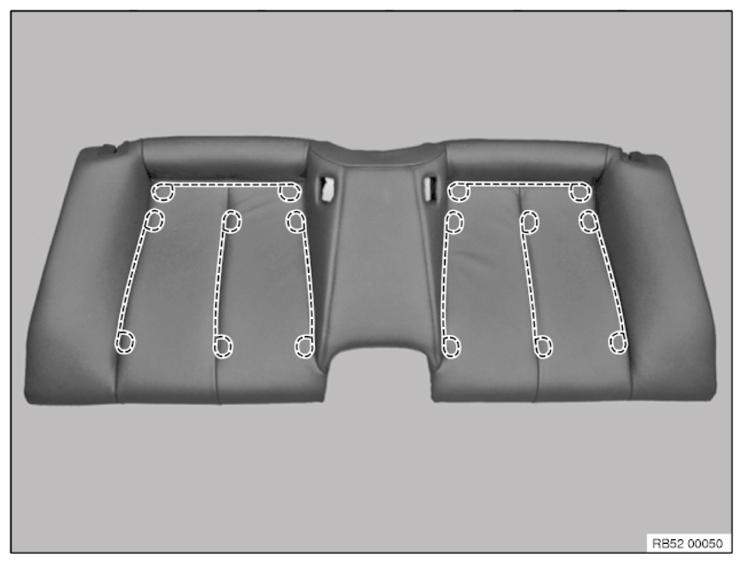

Release all clamps in marked area
Remove seat cover from padding
Remove remaining clamps from cover and upholstery

Installation note:

Insert new clamps with special tool 52 0 050 .

Replacing cover:

Pull all trim wires out of seat cover
If necessary, cut in mounting for trim wires of new cover
Push trim wires into new seat cover

Fig 4: Pushing Trim Wires Into New Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, replace head restraint guide (1).

Lever out detent ring (2) with plastic wedge.

Fig 5: Identifying Head Restraint Guide And Detent Ring

G10047654

Courtesy of BMW OF NORTH AMERICA, INC.
