52 17... Replacing upholstery for front seat thigh support (sport)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove THIGH SUPPORT

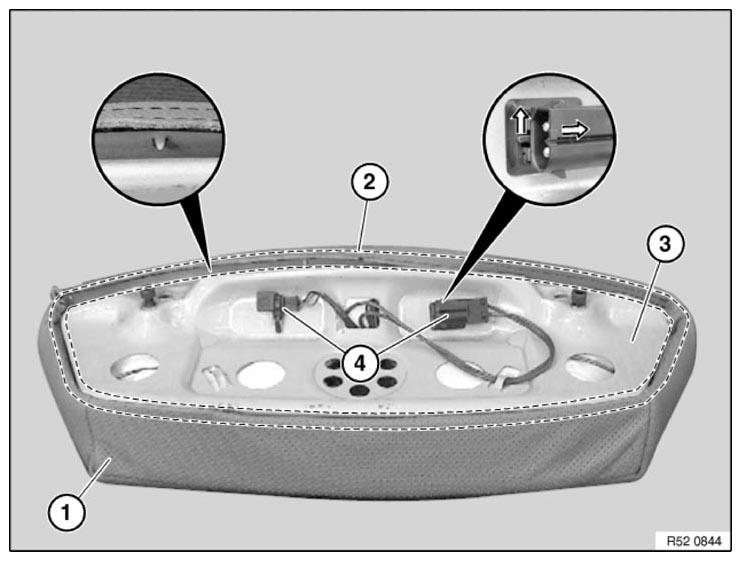

NOTE: Graphic shows versions with climate control and seat heating.

Lever out cover welt in area (2).

Installation note:

Cover welt is fastened by hooks in cover (3).

Remove plug connections (4) and feed out through cover (3).

Remove cover (3) from upholstery and cover (1).

Version with seat heating or climate control:

Feed out cable (1) and remove upholstery (2).

Fig 1: Removing Front Seat Thigh Support Upholstery

G10063570

Courtesy of BMW OF NORTH AMERICA, INC.

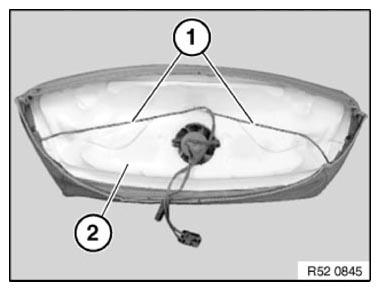

Installation note:

Ensure correct cable routing (1).

Fig 2: Identifying Correct Cable Routing

G10063571

Courtesy of BMW OF NORTH AMERICA, INC.

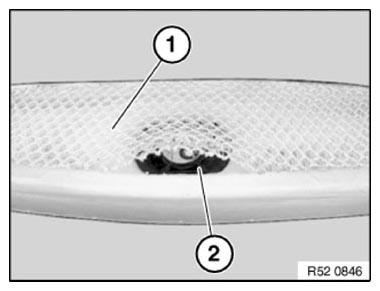

Version with climate control:

Remove separating net (1).
Lift out fan (2).

Fig 3: Identifying Fan And Separating Net
Courtesy of BMW OF NORTH AMERICA, INC.
