52 16 392 Removing and installing/replacing front left or right crash-active headrest

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe SAFETY REGULATIONS when handling airbag modules.
Incorrect handling may result in triggering of the crash-active headrest and thereby cause injury.

Switch off the ignition!

Necessary preliminary tasks:

Disconnect NEGATIVE BATTERY CABLE
Partially remove backrest cover. See BACKREST COVER FOR DRIVER'S SEAT or BACKREST COVER FOR FRONT PASSENGER SEAT .

Starting situation:

Head restraint is in the crash position after being triggered.

A triggered head restraint can be recognized by the padded section which has moved upwards.

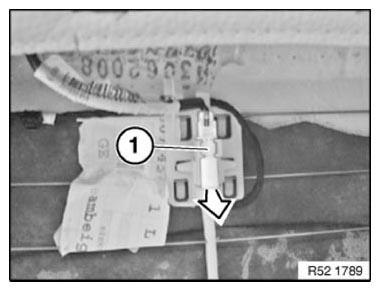

Unlock PLUG CONNECTION (1) and disconnect.

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

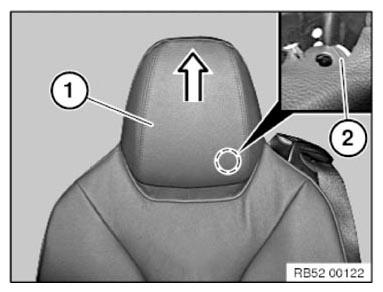

Push head restraint (1) upwards.

Operate latch mechanism (2) and remove head restraint towards the top.

Remove the accompanying plug connection towards the top.

Fig 2: Removing Head Restraint

Courtesy of BMW OF NORTH AMERICA, INC.
