52 17... Removing and installing/replacing cover for front seat

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Unclip cover (1) towards front.

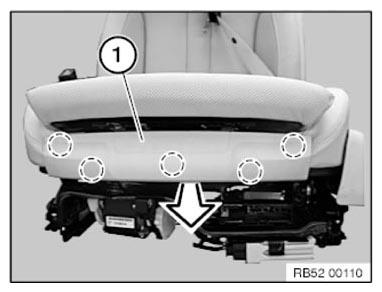

Fig 1: Unclipping Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Plastic tabs must not be damaged.

Replace cover if necessary.

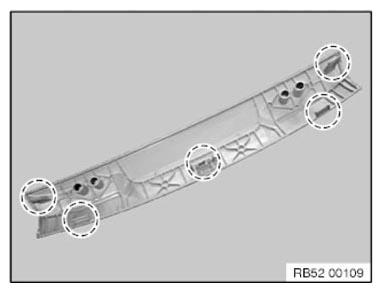

Fig 2: Locating Plastic Tabs

Courtesy of BMW OF NORTH AMERICA, INC.
