52 17 409 Removing or installing/replacing thigh support cover on left or right front seat (Comfort)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Unlock and move thigh support (1) as far forward as possible.

Lift out welt (3) of seat cover (2) from thigh support.

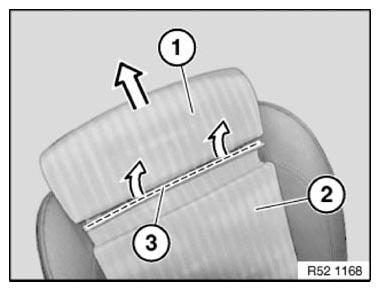

Fig 1: Identifying Thigh Support, Welt, And Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out cover welt in marked area (1).

Detach trim wire in marked area (2) from thigh support.

Remove cover with upholstery.

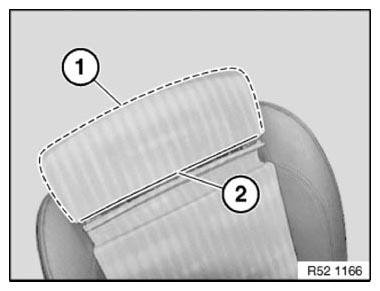

Fig 2: Identifying Cover Welt And Trim Wire

Courtesy of BMW OF NORTH AMERICA, INC.

Pull cover (1) off upholstery (2).

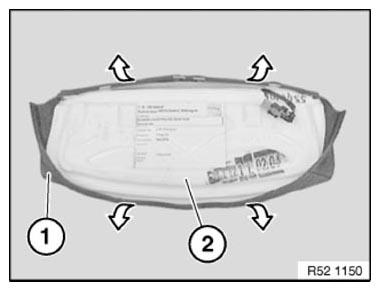

Fig 3: Pulling Cover Off Upholstery

Courtesy of BMW OF NORTH AMERICA, INC.
