52 16 054 Removing and installing/replacing adjustment unit for backrest width adjustment on left or right front seat

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove backrest cover for front seat. See BACKREST COVER FOR DRIVER'S SEAT or BACKREST COVER FOR FRONT PASSENGER SEAT .

Cut open cable strap (1).

Disconnect plug connection (2) on drive.

Installation note:

Lay cables without kinks.

Replace cable tie (1).

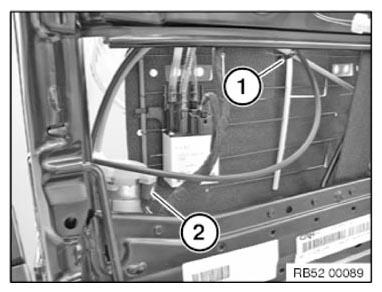

Fig 1: Identifying Cable Tie And Plug Connection

G10063614

Courtesy of BMW OF NORTH AMERICA, INC.

Release rivets (1) for drive.

Remove inner electric motor from backrest frame.

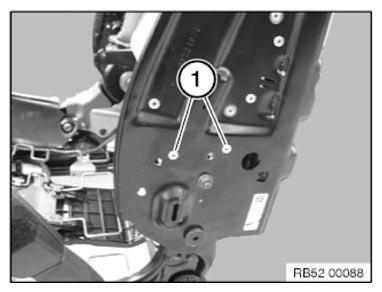

Fig 2: Identifying Rivets

G10063615

Courtesy of BMW OF NORTH AMERICA, INC.

Release rivets on left and right and remove adjusting elements.

Remove complete adjustment unit.

NOTE: Adjusting element, cables and drive form a single unit and can only be replaced completely.

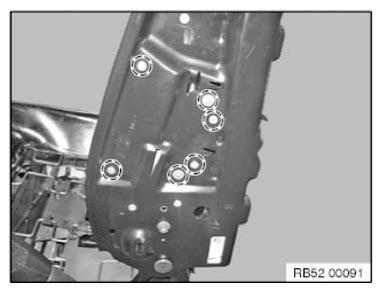

Fig 3: Locating Rivets
