65 50 030 Removing and installing/replacing TV module

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

NOTE: Follow notes for HANDLING OPTICAL FIBRES .

Necessary preliminary work:

Disconnect NEGATIVE BATTERY CABLE
Remove BACKREST

Release screws (1).

Release wiring harness fixations at marked points.

Feed out TV module (3).

Unlock plug connections (2) and disconnect.

Remove TV module (3).

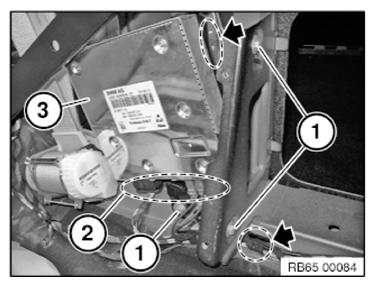

Fig 1: Locating TV Module Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws.

Remove TV module (1) from holder (2).

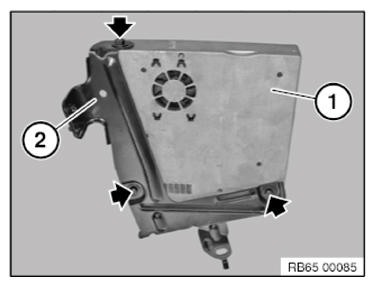

Fig 2: Locating TV Module Holder Screws

Courtesy of BMW OF NORTH AMERICA, INC.
