65 20 120 Removing and installing/replacing aerial
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove MULTIPLE-BAND AERIAL

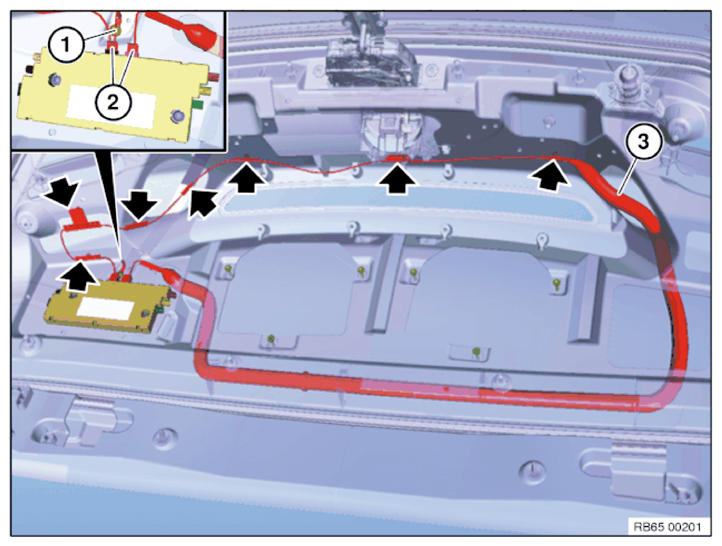

Release screw (1).
Disconnect plug connections (2).
Release cable clips at marked positions.
Remove aerial (3).
Installation note:
If necessary, replace cable clips.
Make sure aerial (3) is correctly installed.
