65 75 080 Removing and installing/replacing interior movement detection module in left or right front door
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION)
.
Necessary preliminary work:
- Remove front door trim panel. See 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

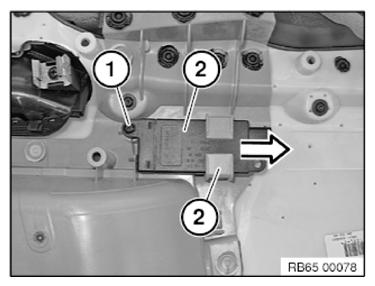

Release screw (1).
Remove microwave sensor (2) from holder (3) on door trim panel in direction of arrow.
Replacement:
Carry out VEHICLE PROGRAMMING/CODING
