65 20 090 Removing and installing/renewing aerial amplifier (aerial diversity)
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove tailgate trim. See 51 49 000 REMOVING AND INSTALLING OR REPLACING TRIM FOR REAR LID .

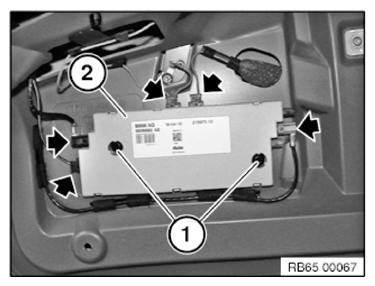

Unlock plug connections and disconnect.
Release screws (1).
Remove aerial amplifier (2).
