41 35 120 Partially Replace Rear Left Side Wall: Notes
Read contents of 41 00... 0 CONTENTS OF BODY, GENERAL .
Strip down vehicle. See 41 35 120 STRIPPING OPERATION - PARTIAL REPLACEMENT OF LEFT REAR SIDE PANEL LEFT .
Observe (repair stage 2) procedure. See 41 00... REPAIR TECHNIQUES, REPAIR STAGE 2 .
Following new body parts are required (refer to 41 00... OVERVIEW OF CONSUMABLES ):
- (1) Rear side wall
- (2) Reinforcement plate (not shown)
- (3) Lock nuts (not pictured)
Following consumables are required:
| Material | Quantity |
|---|---|
| Adhesive K5b | 1 |
| Blind rivets N3 | 10 |
| Punch rivets N4 | 18 |
| R1 cleaning agent | 1 |
| Sealant D1 | |
| EMC screws | 1 |
Removing side wall:

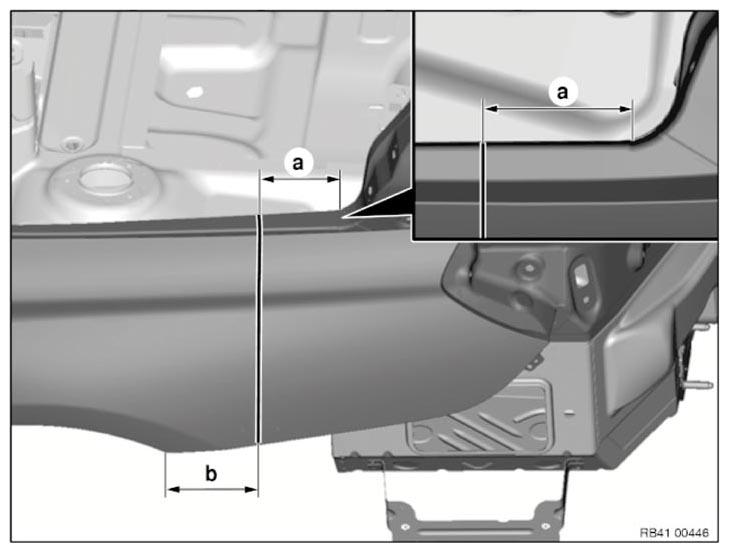

Mark severance cuts in accordance with specified dimensions and cut.
Compare position of severance cut with reinforcement plate. See 41 00... REINFORCEMENT PLATE WITH STUD BOLT (BONDED) .
Dimension a = approx. 115 mm from soft top compartment radius.
Dimension b = approx. 130 mm to corner of wheel arch.

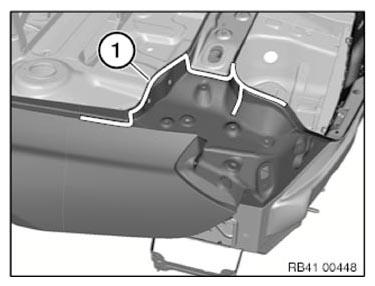

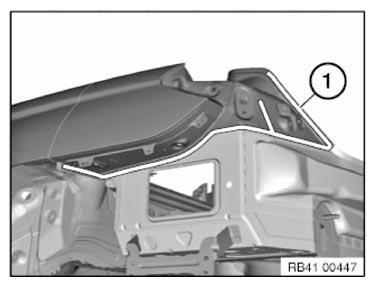

Open welded connections in area (1).
Open welded connections in area (1).
Remove section of side wall.
Preparation of new part:
Mark and cut the severance cut on new part as per the severance cut on the vehicle.
Prepare reinforcement plate at severance cut. See 41 00... WELDING IN REINFORCEMENT PLATE (SHEET STEEL) .

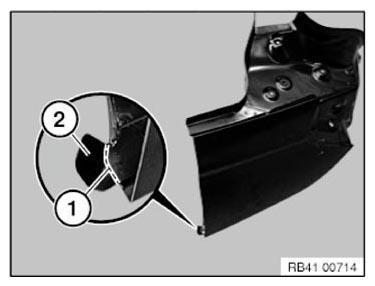

Mark severance cut (1) as pictured and cut.
Remove section (2).

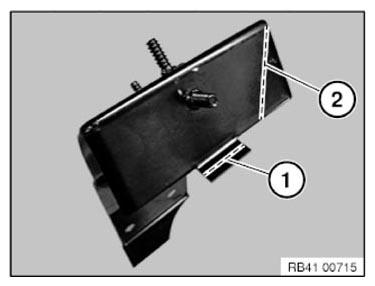

Mark severance cuts (1) and (2) on the reinforcement plate as shown and cut.
Remove sections.
Adjust new part to fit and secure.

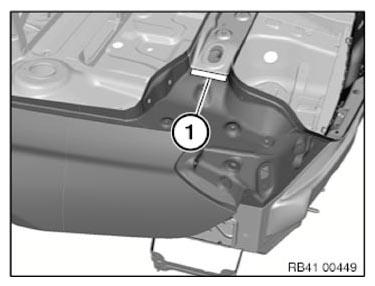

Set two 4.2 mm diameter bore holes for blind rivets in area (1).

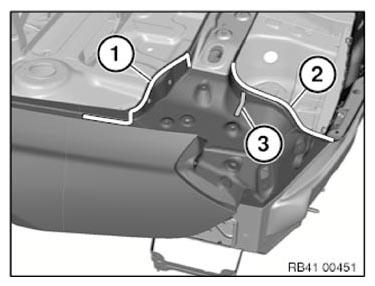

In areas (1) to (3) set 4.2 mm dia. holes for blind rivets:
| Area | Number |
|---|---|
| 1 | 4 |
| 2 | 3 |
| 3 | 1 |

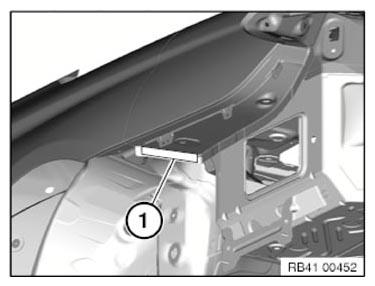

Produce a reinforcement plate (1) at the severance cut of the water channel.
Installation note:
The reinforcement plate is installed during the installation of the side of the soft top compartment with two rivets N4.
Remove new part again and deburr bore holes.
Installing side wall:
Clean all bonding surfaces on vehicle and on new part with cleaning agent R1.
Apply adhesive to bonding surfaces.
Attach section of side wall and rivet with blind rivets N3.
In areas (1) to (3) rivet side panel with punch rivets N4.
| Area | Number |
|---|---|
| 1 | 7 |
| 2 | 6 |
| 3 | 1 |

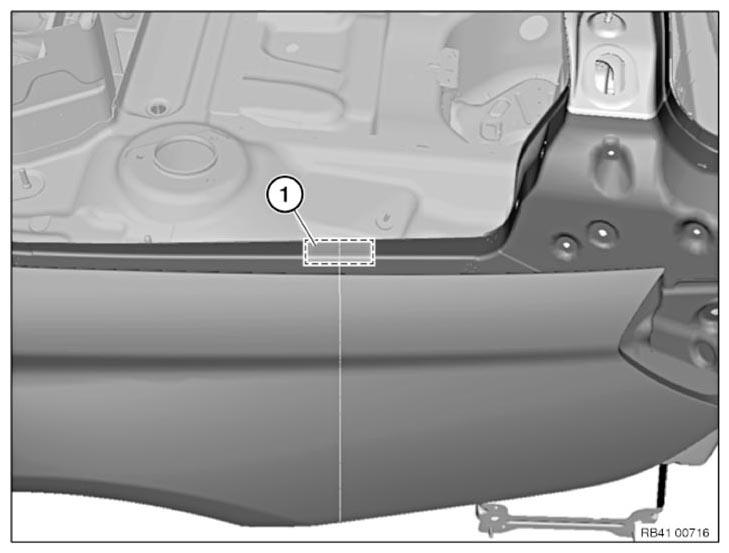

In area (1), rivet section of side wall with 2 punch rivets N 4.
After adhesive has hardened, fit an EMC screws below taillight holder. See 41 00... EMC SCREWS .
