41 63 080 Removing And Installing/Replacing Hinge For Soft Top Compartment Lid
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of 41 00... 0 CONTENTS OF BODY, GENERAL .
Necessary preliminary tasks:
- Remove water channel cover at rear center (tailgate). See 51 71 385 REMOVING AND INSTALLING/REPLACING REAR MIDDLE WATER GUTTER TRIM (REAR LID) .
Open tailgate.

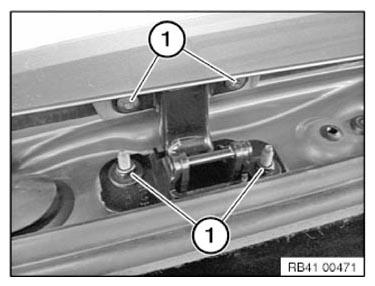

Release screws (1).
Lift soft top compartment lid slightly and remove hinge.
Installation note:
Tightening torque 41 63 1AZ/2AZ
Adjust hinge together with soft top compartment lid. See 41 63 068 ADJUSTING SOFT TOP COMPARTMENT LID .
