41 63 000 Removing And Installing Flap For Fuel Filler Neck

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The illustration is a schematic diagram and is to be applied to the relevant vehicle type.

Open fuel filler flap.

Lever out lock (2) and detach fuel filler flap (1) in direction of arrow.

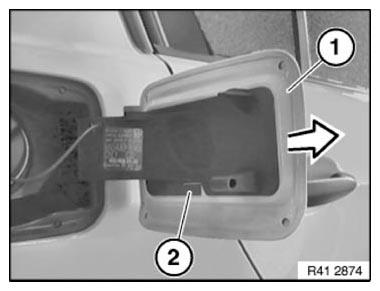

Fig 1: Detaching Fuel Filler Flap

Courtesy of BMW OF NORTH AMERICA, INC.
