41..... Filling Bulkhead Cross Member With Foam

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

For acoustic insulation reasons insulating foam is applied to the finish-painted bodyshell in the bulkhead cross member area.

A 2-component PU cavity foam is used.

Observe safety and application instructions. See 41 00... WORKING WITH 2-COMPONENT PU CAVITY FOAM .

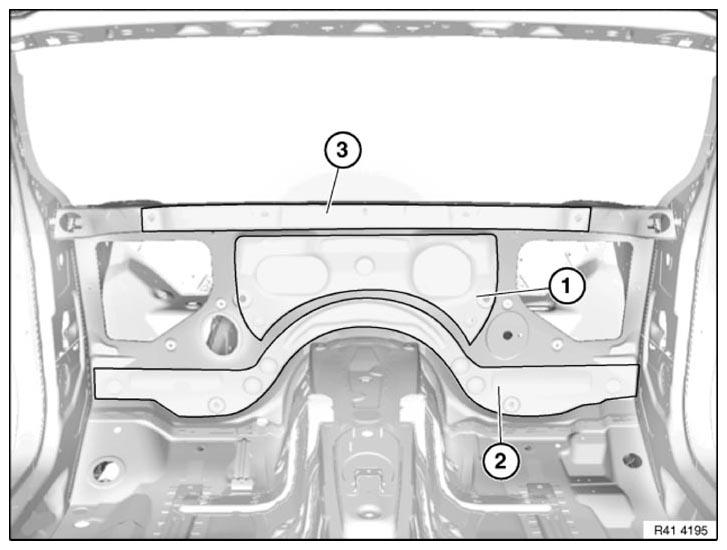

Fig 1: Identifying Bulkhead Cross Member With Foam

Courtesy of BMW OF NORTH AMERICA, INC.

Remove seal plugs of cavities 1 to 3 and fill cavities with foam.

In so doing, insert spray pipe into bores and slowly pull out during the spraying operation.

To perform the operation, it may be necessary to lengthen the spray pipe.

IMPORTANT: Empty the can within 8 minutes.
Follow manufacturer's safety instructions.
