37 12 090 Removing and installing rear left or right spring strut

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR WHEEL

Actuate soft top until soft top compartment lid is fully open.

IMPORTANT: Soft top is depressurized when not activated and soft top compartment lid closes!
Support soft top compartment lid with suitable tool.

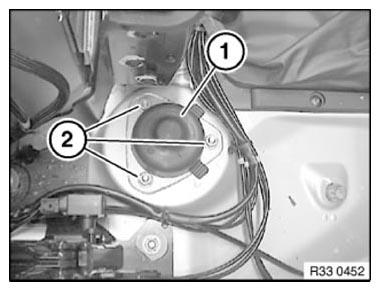

Remove protective cap (1).

Unscrew nuts (2).

Installation note:

Replace Self-locking nuts.

Tightening torque 33 52 1AZ .

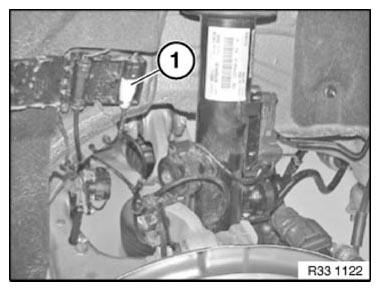

Unfasten plug connection (1) and disconnect.

Expose line up to the spring strut.

Fig 1: Identifying Spring Strut Protective Cap

G10039700

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Identifying Spring Strut Plug Connection

G10039701

Courtesy of BMW OF NORTH AMERICA, INC.

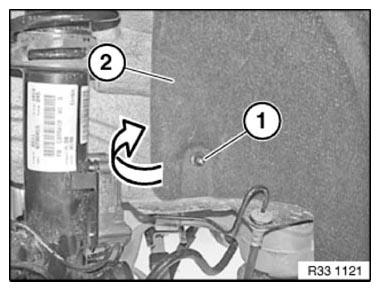

Slacken nut (1).

Partially fold up wheel arch panel (2).

Installation note:

Replace nut if necessary

Fig 3: Identifying Wheel Arch Panel And Nut

G10039702

Courtesy of BMW OF NORTH AMERICA, INC.

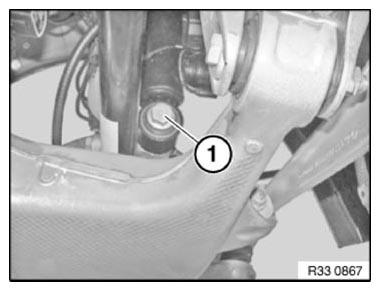

Release screw (1).

Installation note:

Replace screw.

Tightening torque 33 52 3AZ

Fig 4: Identifying Spring Strut Screw

G10039703

Courtesy of BMW OF NORTH AMERICA, INC.

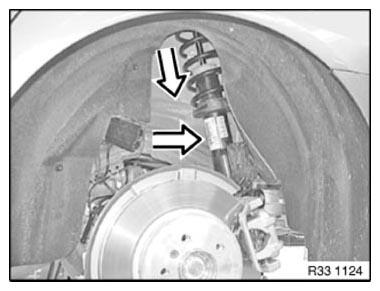

Press wheel carrier downwards.

Remove spring strut towards rear/downwards.

Fig 5: Removing Spring Strut

G10039704

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Before tightening screw connection, check that spring strut shock absorber pin is correctly positioned in wheel carrier.
