37 11 030 Removing and installing front left or right spring strut (M6)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT WHEEL
Remove upper wishbone from swivel bearing. See 31 12 002 REMOVING AND INSTALLING/REPLACING TOP LEFT WISHBONE (M6) or 31 12 003 REMOVING AND INSTALLING/REPLACING TOP RIGHT WISHBONE (M6) .
Remove ANTI-ROLL BAR LINK FROM SPRING STRUT

IMPORTANT: Risk of damage!
Secure spring strut against dropping.

Release screws (1).

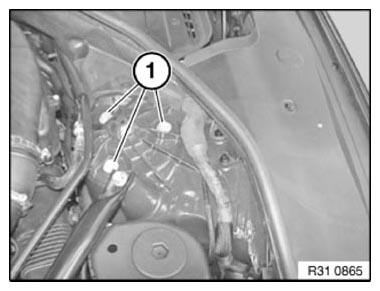

Fig 1: Identifying Spring Strut Screws

G10039653

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Turn support bearing up to stop in clockwise direction and tighten.

Clean contact surface in spring strut dome.

Tightening torque 31 31 1AZ .

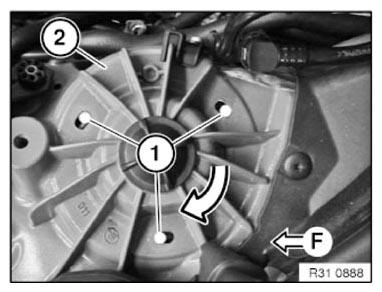

Fig 2: Turning Support Bearing

G10039654

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Disconnect feed line (2) from mounting.

Fig 3: Identifying Feed Line Plug Connection

G10039655

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) and remove screw.

Release spring strut from wishbone (2).

Installation note:

Replace screw and nut.

Note direction of insertion of screw.

Adhere to the assembly sequence.

Tightening torque 31 12 7AZ .

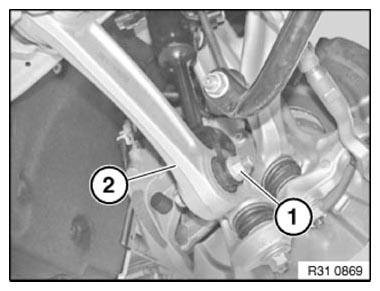

Fig 4: Identifying Wishbone Nut

G10039656

Courtesy of BMW OF NORTH AMERICA, INC.

Remove spring strut downwards out of wheel arch.

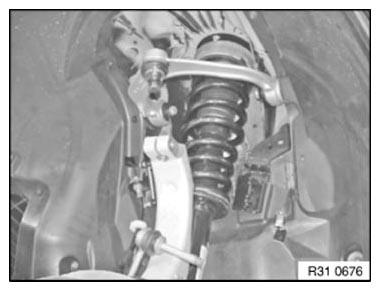

Fig 5: Identifying Spring Strut

G10039657

Courtesy of BMW OF NORTH AMERICA, INC.
