37 14 515 Replacing rear left or right ride height sensor

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Observe SAFETY INSTRUCTIONS for raising the vehicle!

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) !

Unfasten plug connection (1) and disconnect.

Fig 1: Identifying Ride Height Sensor Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (2) and disconnect jointed rod.

Tightening torque 37 14 4AZ

Installation note

Sensor lever (3) must point from ride height sensor to respective rear wheel.

Replace self-locking nut.

Release screws (1) and remove ride height sensor (3).

Tightening torque 37 14 2AZ

Fig 2: Identifying Ride Height Sensor Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Only on F15/F16/F85/F86 vehicles:

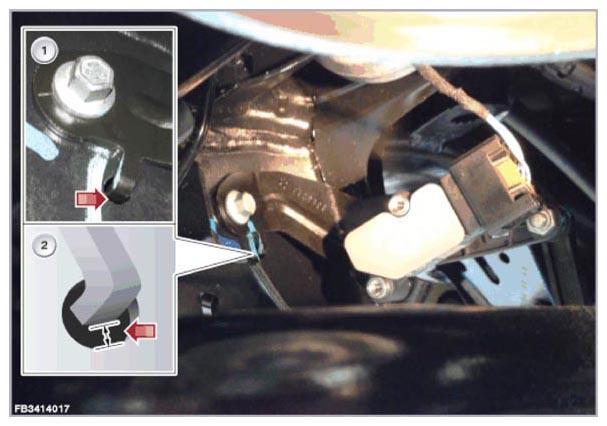

Holder (1) of the ride height sensor must be mounted on the axle support in such a way that the area marked in the image (1) and (2) has the maximum size!

Non-compliance can lead to fault message and vehicle inclination.

Fig 3: Locating Ride Height Sensor Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1). Detach holder (2) from ride height sensor.

Tightening torque 37 14 3AZ

Fig 4: Identifying Ride-Height Sensor Holder And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Carry out RIDE HEIGHT ADJUSTMENT
Check HEADLIGHT SETTING , correct if necessary
