63 99 312 Replacing bulb(s) for left or right rear light (rear lid)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Release expanding rivets (1) and fold down tailgate trim panel (2) slightly.

Installation note:

Replace expanding rivets (1).

Fig 1: Identifying Tailgate Trim Panel And Expanding Rivets
Courtesy of BMW OF NORTH AMERICA, INC.

Turn socket housing (1) in direction of arrow and remove from rear light (3).

Unlock associated plug connection at socket housing (2) and disconnect.

Unlock socket housing (2) and remove from rear light (3).

Installation note:

Make sure socket housing (1; 2) is correctly seated in rear light (3).

Fig 2: Turning Socket Housing
Courtesy of BMW OF NORTH AMERICA, INC.

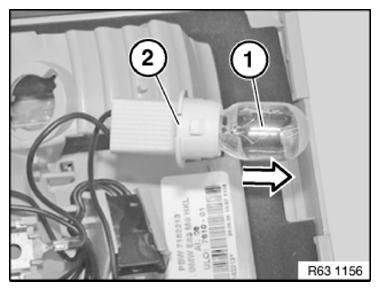

Turn bulb of reversing light (1) in direction of arrow and remove from socket housing (2).

Fig 3: Removing Bulb Of Reversing Light

Courtesy of BMW OF NORTH AMERICA, INC.

Replace bulb of rear fog light (1) along with socket housing.

Installation note:

Note BULB TYPE .

Fig 4: Identifying Bulb Of Rear Fog Light
Courtesy of BMW OF NORTH AMERICA, INC.
