63 21 183 Removing and installing/replacing left or right rear light (on tailgate)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Release expanding rivets (1) and fold down tailgate trim panel (2) slightly.

Fig 1: Identifying Tailgate Trim Panel And Expanding Rivets
G10048541Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace expanding rivets (1).

Unfasten plug connection (1) and disconnect.

Unfasten screws (2).

Tightening torque 61 23 2AZ .

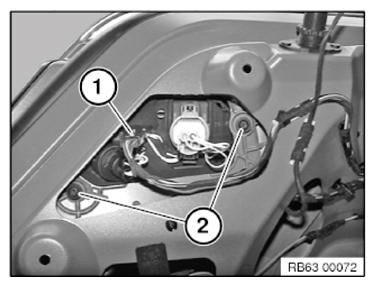

Fig 2: Identifying Expanding Rivets, Plug Connection, Screws
G10048542Courtesy of BMW OF NORTH AMERICA, INC.

Remove rear light (1) in direction of arrow.

Fig 3: Removing Rear Light
G10048543Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The seal (1) must not be damaged or missing.

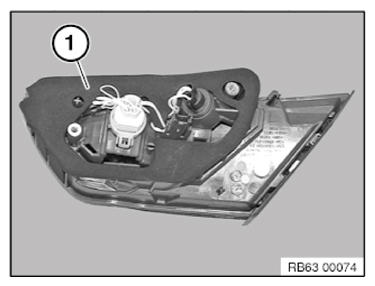

Fig 4: Identifying Rear Light Seal
G10048544Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
