63 11 848 Replace both the left LED fans

Necessary preliminary tasks:

• Remove wheel arch cover (front section). See 51 71 038 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER (FRONT SECTION) .
• Remove seal mounting for engine compartment lid. See 51 76 035 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT ENGINE COMPARTMENT LID SEAL LOCATOR .

Release screws (1).

Tightening torque 63 11 6AZ .

Remove protective cap (2).

Installation note:

Check protective cap (2) for correct fit.

Fig 1: Identifying Protective Cap Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Screw traps should not be damaged or missing.

The seal (1) must not be damaged or missing.

Replace protective cap (2) if necessary.

Fig 2: Locating Protective Cap Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 63 11 5AZ .

Pull out the LED-fan (2).

Unlock and disconnect connector (3).

Fig 3: Identifying LED-Fan, Connector, Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 63 11 6AZ .

Remove cover (2).

Installation note:

Check protective cap (2) for correct fit.

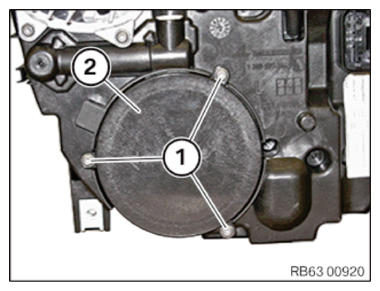

Fig 4: Identifying Protective Cap, Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Screw traps should not be damaged or missing.

The seal (1) must not be damaged or missing.

Replace protective cap (2) if necessary.

Fig 5: Locating Protective Cap Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect the connector (1).

Unfasten screws (2).

Tightening torque 63 11 4AZ .

Remove LED module (3).

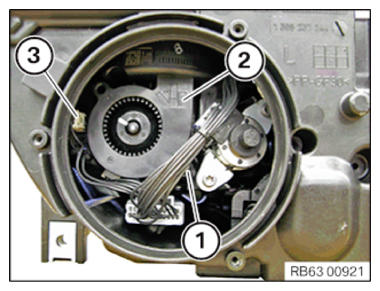

Fig 6: Identifying LED Module, Connector, Screws

Courtesy of BMW OF NORTH AMERICA, INC.
