63 11 731 Replace LED module for left daytime driving lights (late version)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove seal mounting for engine compartment lid. See 51 76 035 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT ENGINE COMPARTMENT LID SEAL LOCATOR .

Release screws (1).

Tightening torque 63 11 6AZ .

Remove cover (2).

Installation note:

Check protective cap (2) is correctly seated.

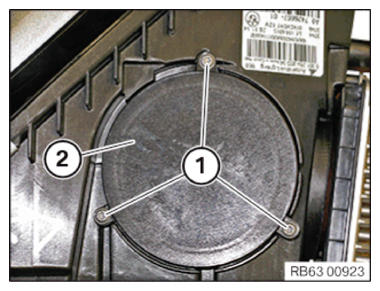

Fig 1: Identifying Protective Cap, Cover And Screws

G10048440

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage due to moisture penetration!

Installation note:

Bolt shackles must not be damaged or missing.

The seal (1) must not be damaged or missing.

Replace protective cap (2) if necessary.

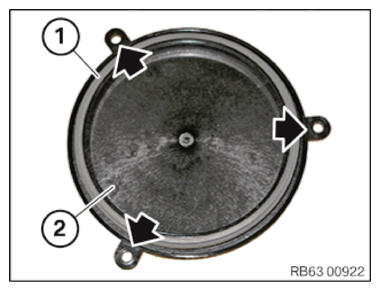

Fig 2: Locating Protective Cap Seal

G10048441

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect the connector (1).

Unfasten screws (2).

Tightening torque 63 11 4AZ .

Feed out LED module (3).

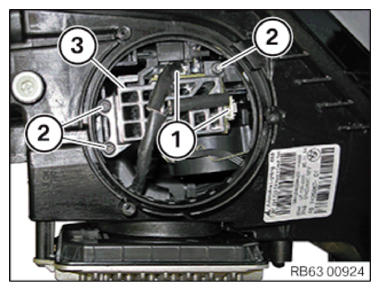

Fig 3: Identifying LED Module, Connector, Screws

G10048442

Courtesy of BMW OF NORTH AMERICA, INC.
