25 11 245 Replacing gearshift arm support bearing
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove propeller shaft. See 26 11 000 REMOVING AND INSTALLING COMPLETE PROPELLER SHAFT (INSERTED - FLEXIBLE DISC AT REAR) or 26 11 000 REMOVING AND INSTALLING COMPLETE PROPELLER SHAFT (CONSTANT-VELOCITY JOINT) .

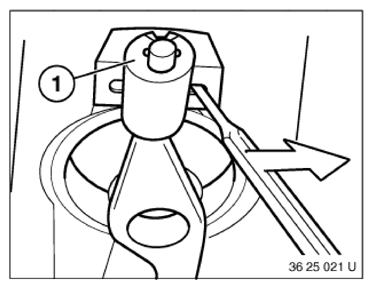

Lever support bearing (1) with a short screwdriver out of mounting.
Pull support bearing off gearshift arm.
Installation note:
Grease bearing journal of gearshift arm.
Grease, refer to BMW Service Operating Fluids. See GEAR SHIFT MECHANISM -- OPERATING FLUIDS .
Fit support bearing (1) with recess (2) towards top rear onto mounting.
