52 14 110 Replacing left lumbar support

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front seat. See 52 14 001 REMOVING AND INSTALLING FRONT SEAT, DRIVER'S SIDE (NORMAL/ELECTRIC) or 52 14 002 REMOVING AND INSTALLING FRONT PASSENGER SEAT (NORMAL/ELECTRIC) .
Partially remove backrest cover from front seat backrest. See 52 14 407 REPLACING BACKREST COVER FOR DRIVER'S SEAT (NORMAL/ELECTRIC) , 52 14 408 REPLACING BACKREST COVER FOR FRONT PASSENGER SEAT (NORMAL/ELECTRICAL) , 52 16 407 REPLACING BACKREST COVER (SPORT) FOR DRIVER'S SEAT or 52 16 408 REPLACING BACKREST COVER (SPORT) FOR FRONT PASSENGER SEAT .

Unlock quick connectors and detach air hoses (1).

Valve unit for lumbar support:

Hoses (blue/red), lumbar support

Installation note:

Connections are coded against incorrect assembly.

Fig 1: Identifying Air Hoses

G06895281

Courtesy of BMW OF NORTH AMERICA, INC.

Detach lumbar support (1) upward from spring wire.

Installation note:

Attach lumbar support cushion (1) over first and fifth wires.

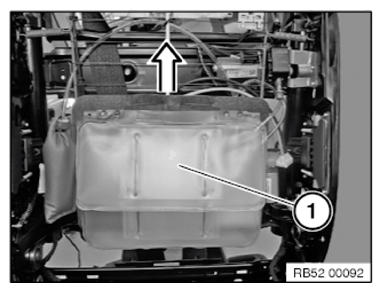

Fig 2: Detaching Lumbar Support Upward From Spring Wire

G10047155

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check lumbar support at top (1) and bottom (2) for damage.

Air hoses (3) must be laid without kinks.

Fig 3: Identifying Lumbar Cushion (Top And Bottom)

G09851363

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Carry out FUNCTION CHECK .
