52 17 198 Removing and installing/replacing rear panel on left or right front seat backrest (comfort)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove COVER AT THE INNER BACKREST .
Remove COVER FOR BELT DEFLECTOR .

Fig 1: Removing Soft-Top Bow On Left And Right From Backrest Frame
Courtesy of BMW OF NORTH AMERICA, INC.

Unclip soft-top bow (1) on left and right and detach from backrest frame.

Detach backrest cover on left and right from metal retainer.

Necessary preliminary tasks:

Remove crash-active headrest. See 52 14 392 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT CRASH-ACTIVE HEADREST .

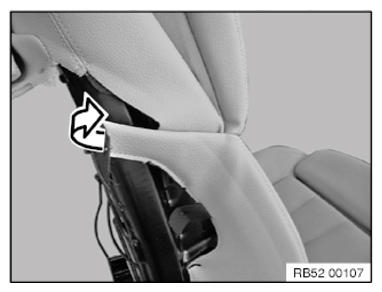

Fig 2: Detaching Backrest Cover On Left And Right From Metal Retainer
Courtesy of BMW OF NORTH AMERICA, INC.

Detach cover tabs from backrest cover on left and right.

Fig 3: Detaching Cover Tabs From Backrest Cover On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on left and right.

Remove rear panel towards top.

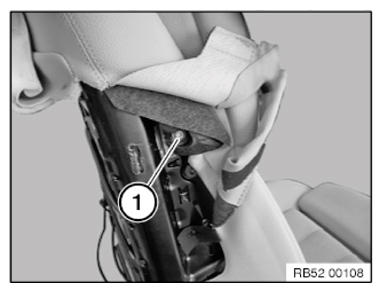

Fig 4: Identifying Rear Panel Screws

Courtesy of BMW OF NORTH AMERICA, INC.
