52 16 054 Removing and installing/replacing adjusting unit for backrest width adjustment on left or right front seat

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove backrest cover for front seat. See 52 14 407 REPLACING BACKREST COVER FOR DRIVER'S SEAT (NORMAL/ELECTRIC) , 52 14 408 REPLACING BACKREST COVER FOR FRONT PASSENGER SEAT (NORMAL/ELECTRICAL) , 52 16 407 REPLACING BACKREST COVER (SPORT) FOR DRIVER'S SEAT or 52 16 408 REPLACING BACKREST COVER (SPORT) FOR FRONT PASSENGER SEAT .

Cut open cable strap (1).

Disconnect plug connection (2) on drive.

Installation note:

Lay cables without kinks.

Replace cable tie (1).

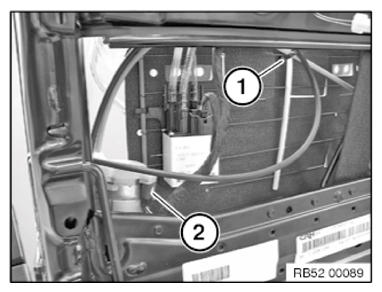

Fig 1: Identifying Cable Tie And Plug Connection

G10047243

Courtesy of BMW OF NORTH AMERICA, INC.

Release rivets (1) for drive.

Remove inner electric motor from backrest frame.

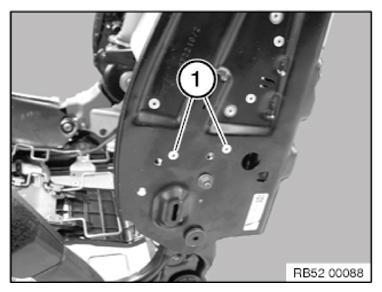

Fig 2: Identifying Rivets

G10047244

Courtesy of BMW OF NORTH AMERICA, INC.

Release rivets on left and right and remove adjusting elements.

Remove complete adjusting unit.

NOTE: Adjusting element, cables and drive form a single unit and can only be replaced completely.

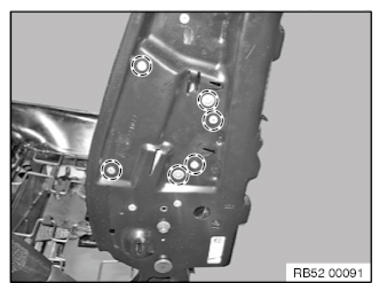

Fig 3: Identifying Left/Right Rivet Locations

G10047245

Courtesy of BMW OF NORTH AMERICA, INC.
