16 14 500 Removing and installing or replacing control unit for electric fuel pump
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE
(ESD protection).
Necessary preliminary work:
- Remove rear seat bench.

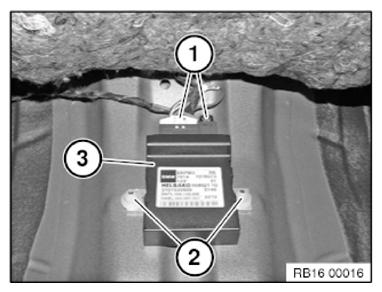

Disconnect plug connection (1).
Release nuts (2) and remove control unit (3).
Installation note:
Check plastic nuts and replace if necessary.
Tightening torque 16 14 1AZ .
Replacement:
- Carry out programming/encoding
