16 12 010 Removing and installing or replacing carbon canister

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Detach rear silencer at rear left (exhaust system remains installed).

Release screws (2) and nuts (1) and remove stoneguard (2).

Installation note:

Check and, if necessary, renew plastic nuts/sheet metal screws.

Fig 1: Identifying Stoneguard And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Detach heat shield (1).

NOTE: Graphic without exhaust system.

Fig 2: Identifying Heat Shield

Courtesy of BMW OF NORTH AMERICA, INC.

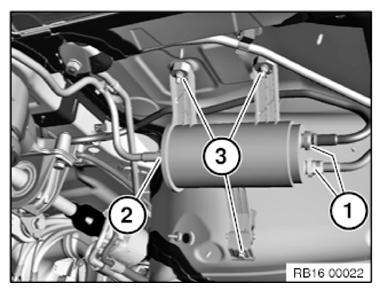

Unlock snap fasteners (1) and (2) and remove tank ventilation lines.

Release screw and nuts (3) and remove carbon canister.

Installation note:

Make sure snap fasteners are correctly engaged.

Tightening torque 16 13 1AZ .

NOTE: Graphic without heat shield.

Fig 3: Identifying Snap Fasteners

Courtesy of BMW OF NORTH AMERICA, INC.
