16 13 521 Removing and installing/replacing pressure switch for Natural Vacuum Leak Detection (NVLD)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Only for M vehicles
Removing the REAR DIFFUSER .

IMPORTANT: When replacing the pressure switch, the DUST FILTER must also always be replaced.

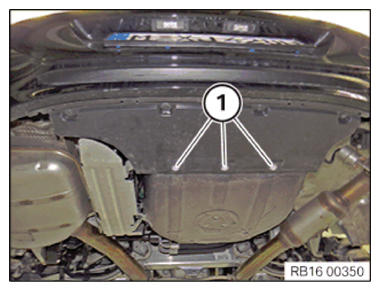

Release the screws (1) of the bumper panel.

Fig 1: Identifying Bumper Panel Screws

G10039409

Courtesy of BMW OF NORTH AMERICA, INC.

Undo nuts and bolts (1).

Dismantle stoneguard (2).

Installation note:

Check and, if necessary, renew plastic nuts/sheet metal screws.

Fig 2: Identifying Stoneguard And Nuts

G10039393

Courtesy of BMW OF NORTH AMERICA, INC.

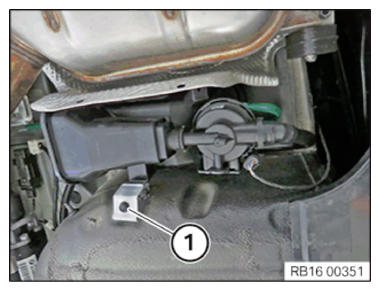

Release screw (1) and remove holder.

Tightening torque: 16 13 1AZ .

Fig 3: Identifying Holder And Screw

G10039411

Courtesy of BMW OF NORTH AMERICA, INC.

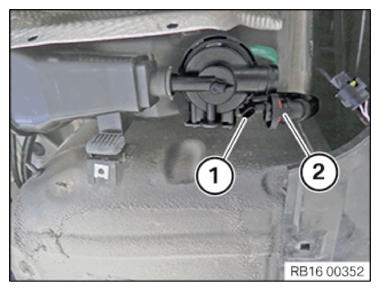

Unlock and disconnect plug connection (1) on the pressure switch.

Unlock snap fastener and ventilation line (2) of pressure switch.

Fig 4: Identifying Plug Connection On Pressure Switch

G10039412

Courtesy of BMW OF NORTH AMERICA, INC.

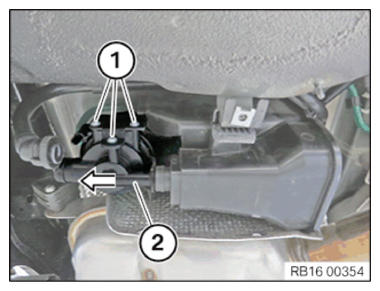

Release screws (1).

Pull off pressure switch (2) in direction of arrow.

Installation note:

Check gaskets and replace if necessary.

Fig 5: Pulling Pressure Switch

G10039413

Courtesy of BMW OF NORTH AMERICA, INC.
